ALLNET Switch industrial smart managed Layer2+ 16 Port GbE • PoE Budget 360W • 12x PoE+ • 4x SFP • Fanless • DIN • ALL-SGI8016PM

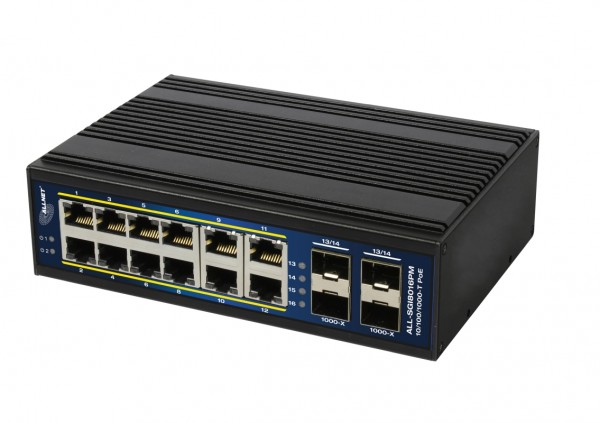

Vorschau: ALLNET Switch industrial smart managed Layer2+ 16 Port GbE • PoE Budget 360W • 12x PoE+ • 4x SFP • Fanless • DIN • ALL-SGI8016PM

images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

disponible, livraison sous environ 1-3 jours ouvrés

Downloads

déclaration de conformité

Déclaration RoHS et REACH de l'UE

Disponibilité: 0
n° d´article 189896
Constructeurs: ALLNET
Référence constructeur: ALL-SGI8016PM
N° EAN 4038816098894
Poids: 0.42kg
garantie: 24 Mois
Renseignements sur l'article ?

ALLNET Switch ALL-SGI8016PM managed L2+/L3 industriel 12 Port Gigabit / 12x PoE / 4x SFP / sans... mehr

Menü schließen

informations sur le produit "ALLNET Switch industrial smart managed Layer2+ 16 Port GbE • PoE Budget 360W • 12x PoE+ • 4x SFP • Fanless • DIN • ALL-SGI8016PM"

ALLNET Switch ALL-SGI8016PM managed L2+/L3 industriel 12 Port Gigabit / 12x PoE / 4x SFP / sans ventilateur / DIN / IP40

Points forts :

        Avec 12*10/100/1000M de ports PoE en liaison descendante, 4*1000M de ports SFP ;
        Supporte une puissance PoE allant jusqu'à 30W chacun ;
        Prise en charge de la gestion L3, telle que OSPF, RIP, QoS, VLAN, MSTP, Multi-broadcast, gestion des ports et gestion PoE ;
        Protection contre les surtensions de 6KV, contact de 8KV / protection ESD aérienne de 15KV ;
        Supporte une température de fonctionnement de -40°C ~+75°C.

ALLNET ALL-SGI8016PM est un commutateur PoE L3 industriel professionnel mais abordable, avec 16 ports Gigabit, supportant jusqu'à 12*10/100/1000M ports PoE descendants et 4* 1000M ports SFP. Les 12*10/100/1000M ports prennent en charge le PoE+ et sont conformes à la norme IEEE 802.3af/at, la puissance PoE par port pouvant atteindre 30W.

Il prend en charge la gestion L3 telle que OSPF, RIP, QoS, VLAN, MSTP, multidiffusion, gestion des ports et gestion PoE, et prend en charge la protection contre les surtensions 6KV, la protection ESD 8KV contact/15KV air. L'installation murale, de bureau et sur rail din est fiable et durable, et peut être utilisée pour la vidéosurveillance sur réseau de sécurité, l'ingénierie réseau et d'autres occasions.

Technical Details:

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	2*DC 48~57V, redundancy power supply
Consumption	Self consumption<20W
Downlink ports	10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	Ports 13~16 1000M SFP slots
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	32Gbps
Though put	23.8Mpps
Buffer	4M
MAC address table	16K
Indicator	Power: 2 *red ; Uplink 13~16: green LEDs indicate Link/Act Downlink 1~12: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2
Working temperature	-40°C~+75°C
Storage temperature	-40°C~+85°C
Humidity	0~95%(No condensation)
Dimension(L×W×H)	165 mm×114 mm×46mm
Material	Metal
Colour	Black
Net-weight	530g
L2 Features Port configuration	Auto-negotiation
	Flow Control
	Port Mirror
L2 Features Link Aggregation	Traffic statistics
	Static link aggregation
	LACP
	Algorithm based on Source/Destination MAC
	Algorithm based on Source/Destination IP
	8 groups
	8 ports per group
L2 Features MAC Table	Aging Time
	Static MAC address
	Dynamic MAC address management
L2 Features VLAN	4K Active VLANs
	4K VID
	802.1Q Tag VLAN
	Port VLAN
	Protocol VLAN
	MAC VLAN
	Management VLAN
	Voice VLAN
	Q-in-Q
	Private VLAN
	GARP/GVRP
L2 Features ACL	64 ACLs
	L2, L3 e L4
	Time-based ACL
L2 Features Spanning tree	802.1D Spanning Tree Protocol (STP)
	802.1w Rapid Spanning Tree Protocol (RSTP)
	802.1s Multiple Spanning Tree Protocol (MSTP)
	Loop Guard
	Root Guard
	TC-BPDU Guard
	BPDU Guard
	BPDU Filter
L2 Features Multicast	256 groups
	IGMP v1/v2/v3
	Fast Leave
	Multicast VLAN
	Static Multicast
	Multicast Filter
	IGMP Statistics
	MLD Snooping
L2 Features PoE management	Support total power consumption control
	Support single port PoE ON/OFF
	Support port output priority
L2 Features QOS	4 priority queues
	CoS port-based
	CoS 802.1p-based
	CoS DSCP-based
	Scheduling algorithms SP, WRR, SP+WRR
	Storm Control (Broadcast, Multicast, Unknown Unicast)
	Bandwidth control per port
Security Features	Port Security
	MAC address filter
	ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
	ARP Protection
	DoS (Denial of Service)
	Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type
	802.1x Autentication (port-based e MAC-based)
	TACACS/TACACS+ Autentication
	RADIUS Autentication
	DHCP Filter
	Guest VLAN
	SSLv2/SSLv3/TLSv1
	SSHv1/SSHv2
	Restriction of WEB access based on: IP Address, And. MAC and Port
	Port Isolation
	Local User Name Password Authentication (2 levels)
	Loopback detection
Management	SNMP v1/v2c/v3
	RMON 4 grupos
	WEB (HTTP/HTTPS)
	CLI (Telnet, Console, SSHv1/v2)
	Firmware upgrade via console/web/TFTP
	Configuration Backup/Reload
	All possible configurations in the CLI must exist in the WEB interface
	LLDP
Other Features	DHCP Relay
	DHCP Client
	DHCP Snooping
	DHCP Option 82
	SNTP Client
	BOOTP Client
Maintenance	Ping and Tracert
	System log (Local and Remote)
	Memory and CPU Monitoring
L3 Features	Static Routing
	OSPFv2
	RIPv1/v2
	DHCP Server
IPV6	IPv6 neighbor discovery (ND)
	Path maximum transmission unit (MTU) discovery
	Internet Control Message Protocol (ICMP) version 6
	TCPv6/UDPv6
	Ping6
	Tracert6
	Telnet(v6)
	Http/Https
	IPv6 TFTP
	Static Routing
	Interface IPV6

Produktmerkmale:

Anzahl Ports PoE/LAN:	12/0
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	Industrial DIN
Extra Features:	IP40
LAN Geschwindigkeit:	1Gbit/S
Management:	full managed
PoE Port Leistung:	30W at
SFP Geschwindigkeit:	SFP 1GBit
SFP Port Anzahl:	4
