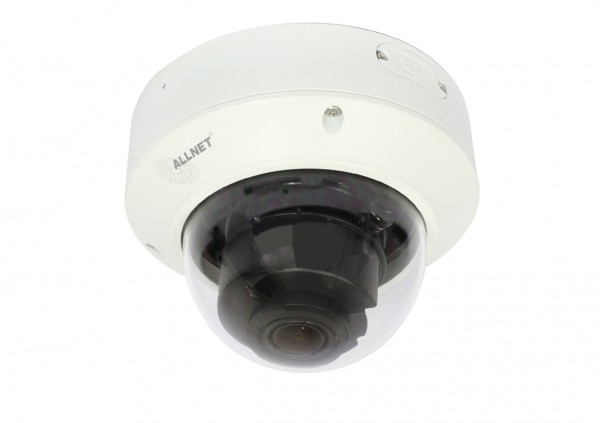

ALLNET IP Kamera Fix Dome / Outdoor / 5MP / IR / Vandalismus

Vorschau: ALLNET IP Kamera Fix Dome / Outdoor / 5MP / IR / Vandalismus

images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

disponible, livraison sous environ 1-3 jours ouvrés

Downloads

Déclaration RoHS et REACH de l'UE

Disponibilité: 0
n° d´article 209791
Constructeurs: ALLNET
Référence constructeur: ALL-CAM2495v3-LVEFN
N° EAN 4038816209795
Poids: 1kg
garantie: 24 Mois
Renseignements sur l'article ?

ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized varifocal... mehr

Menü schließen

informations sur le produit "ALLNET IP Kamera Fix Dome / Outdoor / 5MP / IR / Vandalismus"

ALLNET IP Camera Fix Dome / Outdoor / 5MP / IR / Vandalism / Low-Light / Motorized varifocal lens / 93° / "ALL-CAM2495v3-LVEFN"

Highlights:

Optics
1/2.7'', with light source
SmartIR, up to 50m (164 ft) IR distance
Up to 120 dB optical WDR (Wide Dynamic Range)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
2592*1944@20fps in main stream
ROI (Region of Interest)
Network
ONVIF compliance
Setup
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 1 input and 1 output, audio 1 input and 1 output
IP67 ingress protection
IK10 vandal resistant

Technical Details:

	ALL-CAM2495v3-LVEFN
Camera
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens
Iris	Auto aperture
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.7	70.9(232.5ft)		28.4(93.0ft)	14.2(46.5ft)		7.1(23.3ft)
	13.5	247.5(812.0ft)		99.0(324.8ft)	49.5(162.4ft)		24.8(81.2ft)
Angle of View (H)	26.8°~93.1°
Angle of View (V)	20.7°~66.0°
Angle of View (O)	31.6°~121.0°
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0°~355°		Tilt: 0°~80°			Rotate: 0°~355°
Min. Illumination	Colour:0.002ux (F1.2, AGC ON) 0 lux with IR
WDR	120dB
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 50m (164 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 5MP(25921944),Max 20fps; 4MP(25601440),Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720576), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
ROI	Supported
Video stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas(8 blacks/8 mosaics)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Support
BLC	Support
Events
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Two-way Audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZLive Ezview
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O	Audio cable
	1 Input: impedance 35kΩ; amplitude 2V [p-p]
	1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	1/1
Network	1 * RJ45 10M/100M Base-TX Ethernet
Certification
Certifications	CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15
General
Power	DC12V(±25%), PoE(IEEE 802.3af)
	Power consumption: Max 8W
	Support overcurrent protection, Input short circuit protection
Dimensions (Ø x H)	Φ148.0 x 111.4mm (Φ5.8’’ x4.4’’)
Weight	0.93kg(2.05lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection	6KV
Vandal Resistant	IK10
Ingress Protection	IP67
