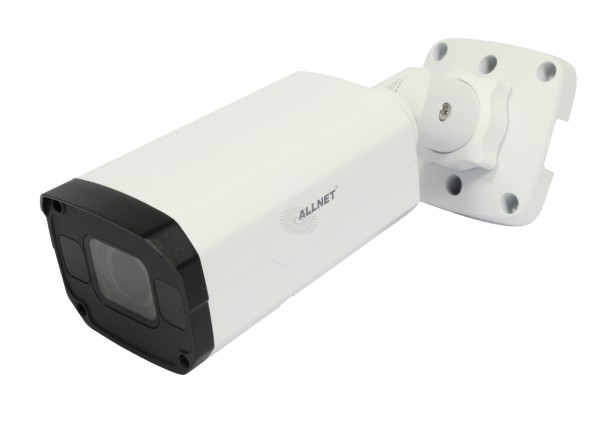

ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / M

Vorschau: ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / M

images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

disponible, livraison sous environ 1-3 jours ouvrés

Downloads

Déclaration RoHS et REACH de l'UE

Disponibilité: 0
n° d´article 209788
Constructeurs: ALLNET
Référence constructeur: ALL-CAM2496v3-LEFN
N° EAN 4038816117830
Poids: 1kg
garantie: 24 Mois
Renseignements sur l'article ?

ALLNET IP Camera Bullet / Outdoor / 5MP / IR / Low-Light / Motorized varifocal lens / 93° /... mehr

Menü schließen

informations sur le produit "ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / M"

ALLNET IP Camera Bullet / Outdoor / 5MP / IR / Low-Light / Motorized varifocal lens / 93° / "ALL-CAM2496v3-LEFN"

Highlights:

Optics
1/2.7'', with light source
SmartIR, up to 50m (164 ft) IR distance
Up to 120 dB optical WDR (Wide Dynamic Range)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
2592*1944@20fps in main stream
ROI (Region of Interest)
Network
ONVIF compliance
Setup
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 1 input and 1 output, audio 1 input and 1 output
IP67 ingress protection
IK10 vandal resistant

Technical Details:

	ALL-CAM2496v2-LEFN
Camera
Sensor	1/2.7",5.0 megapixel, progressive scan, CMOS
Lens	2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.7	60.8		24.3	12.2		6.1
	13.5	303.8		121.5	60.8		30.4
Angle of View (H)	106.25°~ 30.42°
Angle of View (V)	56.36°~ 17.22°
Angle of View (O)	110.34°~34.18°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°			Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56 dB
IR Range	Up to 50m (164ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream:5MP (28801620), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O	Input: impedance 35kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	1/1
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 8.0 W
Dimensions (L × W × H)	245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
Net Weight	0.92kg (2.0lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6KV
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	N/A
