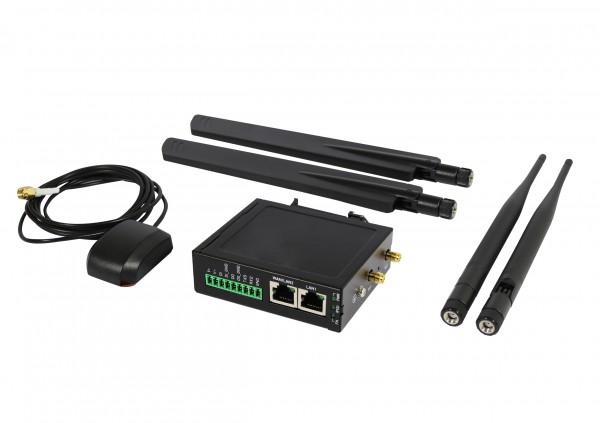

ALLNET ALL-RUT22GW Compact Industrial 4G LTE Cellular Router

Vorschau: ALLNET ALL-RUT22GW Compact Industrial 4G LTE Cellular Router

images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

disponible, livraison sous environ 1-3 jours ouvrés

Downloads

déclaration de conformité

Guide d'installation DE

Guide d'installation EN

Déclaration RoHS et REACH de l'UE

Disponibilité: 0
n° d´article 182958
Constructeurs: ALLNET
Référence constructeur: ALL-RUT22GW
N° EAN 4038816182951
Poids: 1kg
garantie: 24 Mois
Renseignements sur l'article ?

Le ALLNET ALL-RUT22GW est un routeur cellulaire 4G LTE compact, léger et rentable pour une... mehr

Menü schließen

informations sur le produit "ALLNET ALL-RUT22GW Compact Industrial 4G LTE Cellular Router"

Le ALLNET ALL-RUT22GW est un routeur cellulaire 4G LTE compact, léger et rentable pour une utilisation dans des environnements industriels à température étendue. Le routeur ALL-RUT22GW est équipé de deux ports réseau Ethernet et utilise les réseaux cellulaires 2G, 3G et 4G pour les communications filaires et sans fil dans les environnements industriels. Doté d'un port série RS232 et d'interfaces d'entrée/sortie numériques, le routeur est facile à configurer et permet de saisir très rapidement les transmissions de données en temps réel pour les applications industrielles d'OT et de machine à machine.

Avec son tunnel VPN, son pare-feu, son TR069 et son piège SNMP, le ALL-RUT22GW prend en charge l'authentification, le cryptage et la gestion hautement sécurisés de vos données entre les réseaux publics et privés. Le routeur peut être utilisé de manière flexible dans une plage de température de -30 à +70°C environ et dans une plage de tension d'entrée de 8 à 48V dans différents environnements et applications.

Le routeur industriel ALL-RUT22GW est le choix idéal pour simplifier les solutions complexes et vous permet de personnaliser vos services pour les réseaux industriels et les applications de ville intelligente.

Technical Details:

Cellular Interface

Standards: (Please see ordering information for optional band)
- 4G: FDD LTE, TDD LTE
- 3G: WCDMA
- 2G: GSM/EDGE
LTE Data Rate: CAT 4, 150Mbps (DL), 50Mbps (UL)

Hardware Interface

High Performance 550 MHz SoC with 128MByte Flash
1 x Micro SIM Connector (push-push type)
1 x LAN 10/100 Mbps Ethernet port
1 x WAN 10/100 Mbps Ethernet port
WPS / RESET Button
1 x RS-232 (TXD/RXD/GND)
1 x RS-485 (D+/D-/GND) (M330-W5 Model)
1 x DI (Non-Isolated), 1 x DO (Non-Isolated)
2 x SMA connectors for detachable LTE Antenna
2 x RP-SMA connectors for detachable Wi-Fi Antenna
1 x SMA connector for detachable GPS antenna

Wi-Fi Interface

Compliant with IEEE 802.11 b/g/n Wi-Fi standards
2.4 GHz radio band for wireless
2T2R 300 Mbps wireless operation rate
Wireless security with WPA2-PSK(AES)
Multiple SSIDs
Wireless MAC Filtering
Wireless client isolation

Physical Characteristics

Enclosure:Metal Case
Dimensions (W x H x D):91 x 28 x 74 mm
Weight:250 g (0.5512 lb)
Installation:DIN-rail / Wall mounting

LED Display

1 x Power LED
1 x Ethernet LED for each port (LAN/WAN)
1 x RSSI LTE LED
1 x Function LED (User define by Web)

Power Supply

Power Consumption 7 Watts(Max)
Power Input 8 ~ 48 VDC

Software

Network Protocols:

IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client, PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy,

VRRP, OSPF, Message Queue Telemetry Transport

(MQTT Broker), BGP, Flow (Modbus master ↔ MQTT client)

Routing/Firewall:

NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP-1/2, IPS, Policy Route

VPN:

OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256), GRE, PPTP, L2TP

Wireless Connectivity:

WAN Wi-Fi Client

Others:

DDNS, QoS, UPnP, SMS Action, GPS Track Drawing, GPS TCP Push

Alarm:

DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap, E-mail, TR069

Management Software

Web GUI for remote and local management, CLI
Syslog monitor
SNMP, TR069
FOTA (Firmware over the Air)
Remote management via SSH v2, HTTPS
Local management via Telnet, SSH v2, HTTP/HTTPS

Environment

Operating Temperature -30 ~ +70°C
Storage Temperature -40 ~ +85°C
Ambient Relative Humidity 10 ~ 95% (non-condensing)
Humidity 0 ~ 95% (non-condensing)

Standards and Certifications

EMC:CE, FCC
EMI:EN 301489 , FCC Part 15B Class B
EMS:EN 301489
Vibration:IEC60068-2-6
Radio : EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 300328, EN 303413, EN 62311
