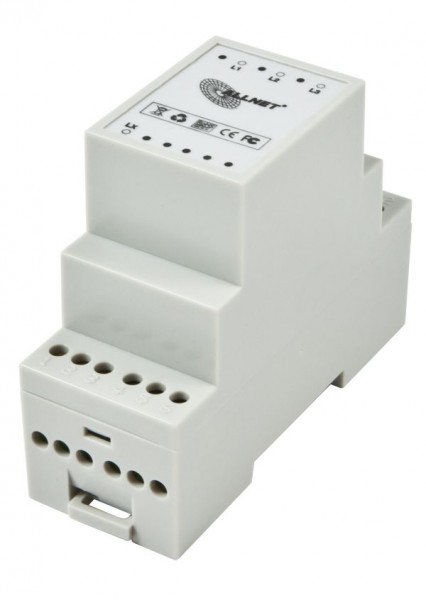

ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz)

ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz)
ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz)
ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz)

Vorschau: ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz) Vorschau: ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz) Vorschau: ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz)
images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

disponible, livraison sous environ 1-3 jours ouvrés

descriptif accessoires 6 Downloads
descriptif
Phase coupler for power line networks for installation in the fuse box (top-hat rail).... mehr
Menü schließen
informations sur le produit "ALLNET ALL1688PC / Powerline phase coupler 3 phases (1~70MHz)"

Phase coupler for power line networks for installation in the fuse box (top-hat rail).

Highlights:

  • 3-phase version
  • Frequency range 1-70 MHz
  • AC 250 / 440 V, 4 x 22nFX2, 3-phase
  • CE approved
  • installation width: 34mm
  • Installation depth: 70mm max.

Interconnects all phases/Phase coupler of the home power system and makes the powerline signal available on all outlets in a circuit.

For coupling between sub-distribution boards or across RCDs and electricity meters, only ALL16881PC (Art. 112411) may be used!

Attention. This article must only be installed by authorised and qualified persons.

Technical Details:



Frequency Range:

0-70Mhz

Nominal Voltage:

AC 250/440V 4x22nFX2, 3 phase

Temperature Range:

-25°C - 100°C

Installation width:

34mm

Installation depth:

70mm max.

Mounting:

DIN rail mounting

Mark:

CE
