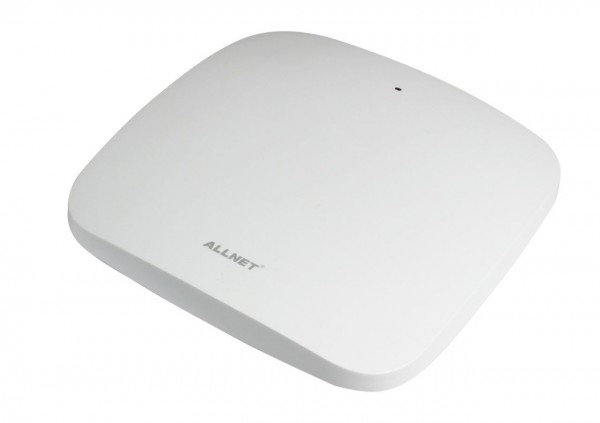

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo
prix hors taxe + frais de livraison
disponible, livraison sous environ 1-3 jours ouvrés
- Disponibilité: 0
- n° d´article 211734
- Constructeurs: ALLNET
- Référence constructeur: ALL-WAPC0522AX-3000
- N° EAN 4038816126658
- Poids: 0.569kg
- garantie: 24 Mois
- Renseignements sur l'article ?
Downloads
ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo
Highlights:
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
- WPA3 & WPA2-AES authentication support
- 5 dBi integrated 2x2 antenna
- Supports up to 2,400 Mbps in the 5GHz frequency band & 574 Mbps in the 2.4GHz frequency band
- Support 5GHz DFS channels
- Local and remote management over FitController controller without fees
- 2,5 GBit 802.3af PoE port for easy placement up to 328 feet from a power source
- Choice of AP and WDS modes to meet your management & deployment requirements.
- Operation as SINGLE AP or with on-prem controller ALL-AC100.
ALLNET Apollo Series ALL-WAPC0522AX-3000 2x2 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 574 Mbps on the 2.4GHz frequency and an incredible 2,400Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security. security.
Physical Interfaces:
Technical Details Basics:
|
Basic |
ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP | ||
|
Main Chipset |
IPQ5018 ARM A53, 1GHz Dual-Core |
||
|
Flash |
8MB SPI NOR (reserved) 128MB NAND |
||
|
RAM |
512MB DDR3 |
||
|
Transmit Power (Chain + Combining Gain) |
2.4GHz: 21dBm |
||
|
5GHz: 21dBm |
|||
|
Interface |
1x 10/100/1000/2500Mbps RJ45 Port IEEE802.3at PoE IN 1x Reset Button 1x DC Barrel Jack |
||
|
Operating Temperature |
0 ~ 40°C |
||
|
Dimensions (W x L x H) |
160 x 160 x 30mm |
||
|
Enclosure Material |
Plastic (Top Cover) Metal (Bottom Cover) |
||
|
Certification (Generic) |
FCC, CE |
||
Fully Technical Details:
| Fully |
|
||
| Wireless Radio Specification | |||
|
Access Point Type |
Indoor, dual radios concurrent, |
||
|
Frequency Radio |
2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. |
||
|
Supported Radio Technology |
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT)—HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
||
|
Supported Modulation Type |
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
||
|
Transmit Power (Combined) |
2.4GHz: 21dBm; 5GHz: 21dBm Maximum power is limited by regulatory domain |
||
|
MU-MIMO |
MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. |
||
|
Tx Beamforming (TxBF) |
Increasing signal reliability and transmitting distance. |
||
| Power | |||
|
Maximum Power Consumption (TBD,estimated) |
17.4W |
||
|
PowerSource |
Standard IEEE802.3at DC IN 12V/2A |
||
|
Antenna |
|||
| Internal Antenna |
2.4GHz:4dBi 5GHz:5dBi BLE2.4GHz:4.5dBi (reserved) |
||
|
Interfaces |
|||
|
Networking Interface |
One 10/100/1000/2500 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Ports (reserved) |
||
| Reset Button |
One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) |
||
|
DCIN |
One(1) 12V DC IN | ||
| Mounting | |||
| Ceiling or Wall Mounting |
Mount Access Point in on the ceiling or wall via included accessories |
||
| Mechanical & Environment | |||
|
Dimensions (LxWxH) |
160mmx160mmx30mm | ||
| Operating | Temperature: 0°C~40°C Humidity:0%~90% typical | ||
| Storage | Temperature: -20°C~70°C Humidity:0%~90% typical | ||
| Marks | FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 |
||
RF Performance Specification Wireless Indoor Access Point
|
Channel |
Data Rate |
Transmit Power (Typical AVG.) |
Receive Sensitivity |
||||
|
Tolerance = +/-1.5 dB |
|||||||
|
2.4GHz |
5GHz |
2.4GHz |
5GHz |
||||
|
Combine |
EIRP |
Combine |
EIRP |
||||
|
802.11b |
1M |
21 |
25 |
- |
- |
-95 |
- |
|
11M |
21 |
25 |
- |
- |
-88 |
- |
|
|
802.11g/a |
6M |
21 |
25 |
21 |
26 |
-92 |
-92 |
|
54M |
18 |
22 |
18 |
23 |
-74 |
-73 |
|
|
802.11n HT20 |
MCS0 |
21 |
25 |
21 |
26 |
-92 |
-92 |
|
MCS7 |
18 |
22 |
18 |
23 |
-74 |
-72 |
|
|
802.11n HT40 |
MCS0 |
21 |
25 |
21 |
26 |
-91 |
-89 |
|
MCS7 |
18 |
22 |
18 |
23 |
-72 |
-64 |
|
|
802.11ac VHT20 |
MCS0 |
21 |
25 |
21 |
26 |
-92 |
-92 |
|
MCS8 |
17 |
21 |
17 |
22 |
-67 |
-67 |
|
|
802.11ac VHT40 |
MCS0 |
21 |
25 |
21 |
26 |
-91 |
-89 |
|
MCS9 |
17 |
21 |
17 |
22 |
-66 |
-64 |
|
|
802.11ac VHT80 |
MCS0 |
- |
- |
20 |
25 |
- |
-86 |
|
MCS9 |
- |
- |
17 |
22 |
- |
-61 |
|
|
802.11ac VHT160 |
MCS0 |
- |
- |
20 |
25 |
- |
-83 |
|
MCS11 |
- |
- |
16 |
21 |
- |
-59 |
|
|
802.11ax HE20 |
MCS0 |
21 |
25 |
21 |
26 |
-92 |
-92 |
|
MCS11 |
16 |
20 |
16 |
21 |
-62 |
-61 |
|
|
802.11ax HE40 |
MCS0 |
21 |
25 |
21 |
26 |
-90 |
-89 |
|
MCS11 |
16 |
20 |
16 |
21 |
-59 |
-58 |
|
|
802.11ax HE80 |
MCS0 |
- |
- |
20 |
25 |
- |
-86 |
|
MCS11 |
- |
- |
16 |
21 |
- |
-56 |
|
|
802.11ax HE160 |
MCS0 |
- |
- |
20 |
25 |
- |
-83 |
|
MCS11 |
- |
- |
15 |
20 |
- |
-53 |
|
