Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Vorschau: Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Vorschau: Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Vorschau: Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

Vorschau: Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set

images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

disponible, livraison sous environ 1-3 jours ouvrés

Downloads

Fiche technique DE

Fiche technique EN

Déclaration RoHS et REACH de l'UE

Disponibilité: 0
n° d´article 135731
Constructeurs: Portaluce
Référence constructeur: S21-3653
N° EAN 4038816059581
Poids: 1kg
garantie: 60 Mois
Renseignements sur l'article ?

LED IP master-slave controller up to 3 zones with 5 control channels for RGB white or dual... mehr

Menü schließen

informations sur le produit "Synergy 21 LED Controller 3653 LED RGB-WW (RGB-CCT) Master Set"

LED IP master-slave controller
up to 3 zones with 5 control channels for RGB white or dual white or single colour
10A per zone/slave (120W at 12V and 240W at 24V)‚Common "+" (common plus pole)
Up to 8 slaves per zone via 3655 hub

Connections/functions

-RJ-45 LAN connection
-WLAN
-1*USB connection
-3*button input
-3 zones controllable via slaves, PL3654
-Zones via hub, PL3655, expandable, 8gang
-Web server (IP address), via which the connected RGB/RGB-W/Dual-white strips can be controlled
-RGB random programmes
-Create your own programmes/actions
-Light - time - programme function
-Temperature, brightness sensors can be connected
-Dimming actuators (0-10V) control
-Several controllers can be connected together to form a logical cluster

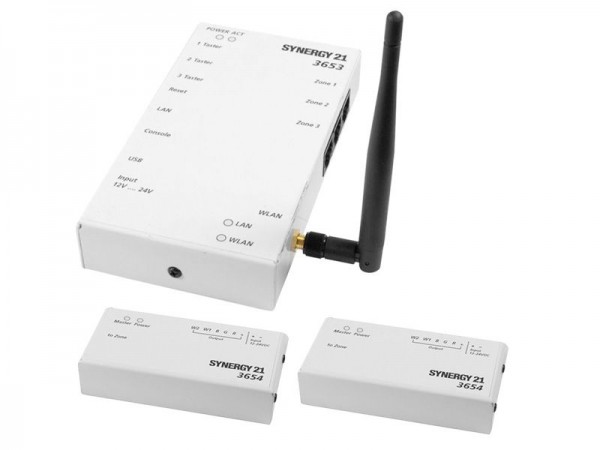

Scope of delivery:
1* Master S21-3653 + power supply unit 12V/1A
2* Slave S21-3654
3* patch cable (connection master - slave and network)
1* Quick guide

Master:
Size: 145*80*28mm
Weight: 150g
Slave:
Size: 110*50*28mm
Weight: 80g

Technical specifications subject to change without notice
