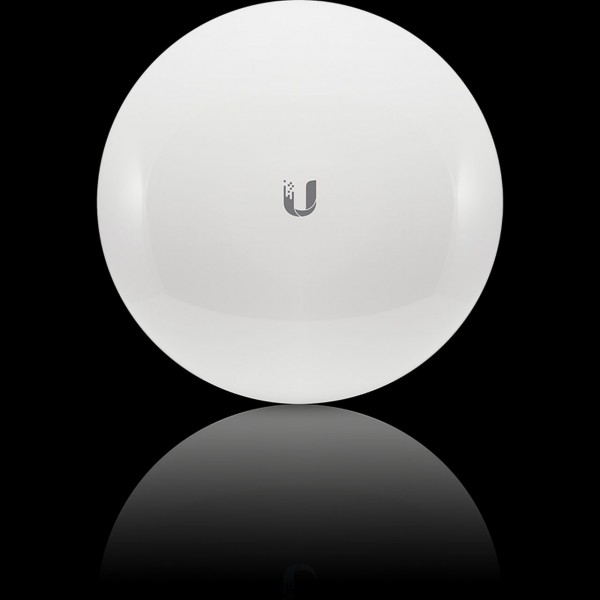

Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE

Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE

Vorschau: Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE Vorschau: Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE Vorschau: Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

Nous contacter par téléphone Nous contacter par Email
descriptif accessoires 3
descriptif
Leistungsstarke 5-GHz-Brücke mit 16 dBi. 5-GHz-Frequenzband... mehr
Menü schließen
informations sur le produit "Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE"
Leistungsstarke 5-GHz-Brücke mit 16 dBi.

5-GHz-Frequenzband

Kostengünstig, leistungsstark

Plug-and-Play-Integration mit airMAX-Antennen

Technische Spezifikationen

NBE-M5-16
Maße 140 x 140 x 54 mm (5,51 x 5,51 x 2,13")
Gewicht 0,320 kg (0,71 Pfund)
Stromversorgung 24 V, 0,5 A Gigabit PoE
Max. Energieverbrauch 6W
Gewinnen 16 dBi
Netzwerkschnittstelle (1) 10/100/1000-Ethernet-Port
Prozessorspezifikationen Atheros MIPS 74Kc, 533 MHz
Erinnerung 64 MB DDR2, 8 MB Flash
LEDs (1) Strom, (1) LAN, (4) WLAN
Signalstärke-LEDs Per Software anpassbar, um benutzerdefinierten RSSI-Werten zu entsprechen
Max. VSWR 1,5:1
Kanalgrößen 5/8/10/20/30/40 MHz
Polarisation Dual-Linear
Gehege UV-stabilisierter Kunststoff für den Außenbereich
Montage Mastmontage (Kit im Lieferumfang enthalten), Wandmontage
Windbelastung 21,4 N bei 200 km/h (4,8 lbf bei 125 mph)
Windüberlebensfähigkeit 200 km/h
(125 mph)
ESD/EMP-Schutz Luft: ± 24 kV, Kontakt: ± 24 kV
Betriebstemperatur -40 bis 70 °C
(-40 bis 158 °F)
Betriebsfeuchtigkeit 5 bis 95 % nicht kondensierend
Wireless-Zulassungen FCC, IC, CE
RoHS-Konformität Ja
Salznebeltest IEC 68-2-11 (ASTM B117),
Äquivalent: MIL-STD-810 G Methode 509.5
Vibrations Test IEC 68-2-6
Temperaturschocktest IEC 68-2-14
UV-Test IEC 68-2-5 bei 40 °C (104 °F),
Äquivalent: ETS 300 019-1-4
Windgetriebener Regentest ETS 300 019-1-4,
Äquivalent: MIL-STD-810 G Methode 506.5
Betriebsfrequenz MHz
Weltweit 5150 - 5875
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
