ALLNET ALL95112 / 12Port Overvoltage protection TP/ALL-IP

Highlights:

• 12 Port 19" 1U rack mounting
• Reliable protection against overvoltages of all devices with network connection
• switches
• router
• firewall
• NoteBook
• PC / Server
• televisions
• Multimedia Devices

Protect your network devices from lightning surges

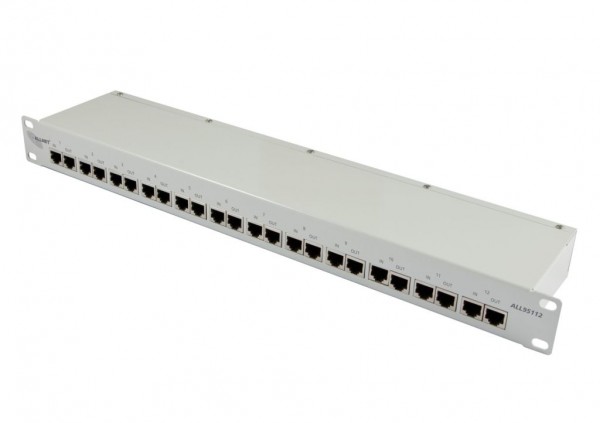

The ALLNET ALL95112 12x overvoltage panel has one input and one output per port and can be safely accommodated in the server cabinet thanks to its 19 inch metal housing. The devices connected via the ALLNET ALL95112 panel are reliably protected against current fluctuations, such as can occur during thunderstorms or overvoltages.

The great advantage of the 19-inch version is the convenient option of equipping several network devices with surge protection in a neat and space-saving manner. All network-capable (ALL-IP connections) WITHOUT PHANTOMIC VOLTAGE, ADSL or VDSL devices can be connected via the panel and reliably protected against overvoltage damage.

Since the signals are only looped through, the PoE power supply with up to 90 watts via LTPoE++ is still possible without restrictions. In addition, all speed levels up to Gigabit are supported without any loss of speed.

In the event of power fluctuations, the discharge capacity is up to 10kA per port, which enables effective protection of the connected devices. With the ALLNET Protection Panel, devices connected via PoE, such as IP cameras or access points, can be protected against damage.

Application examples:

Technische Daten:
