Synergy 21 LED Flex Strip 60 WW DC24V 38W IP20 CRI>90 sideview
prix hors taxe + frais de livraison
disponible, livraison sous environ 1-3 jours ouvrés
- Disponibilité: 0
- n° d´article 165323
- Constructeurs: Synergy 21 LED
- Référence constructeur: S21-LED-F00188
- N° EAN 4038816165329
- Poids: 0.35kg
- garantie: 60 Mois
- Renseignements sur l'article ?
Downloads
Fiche technique DE
Fiche technique EN
Déclaration RoHS et REACH de l'UE

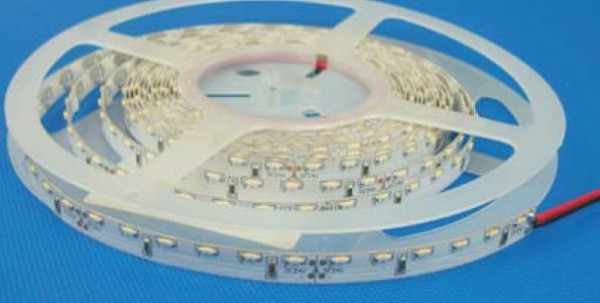

Synergy 21 LED Flex Strip
Length: 5m
Voltage: 24V,
Watt: 7,6W/m, 38W
Light colour: ww, 3000K, CRI>90
Brightness: 722lm/m, total: 3610lm
Beam angle: 120°
Protection class: IP20
Number of LEDs: 60 SMD/m, total: 300LEDs
Dimensions: 5000*8*3 mm
PCB colour: white, open cable end red black (350±5mm)
Operating temperature: -25°C to +50°C
Can be shortened every 6 LEDs 6.25cm
Adhesive tape: yes 3M on the back
Energy efficiency class: A+
kWh/1000h: 41.8
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1.60 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Höhe: | 3 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 62.50 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 3610 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 38 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 41,80 |
| Lumen: | 3610 |
| Watt: | 38,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
