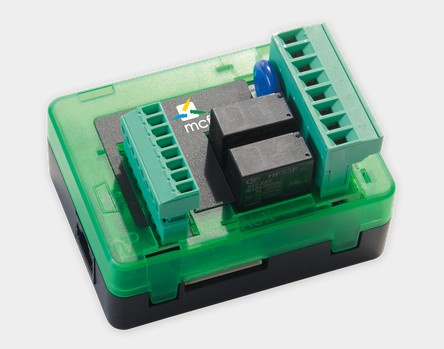

LoRa MCF88 LoRaWAN Serial to LoRaWAN® interface with Input/ Output capability

This interface can be connected via RS232 serial port to send and receive data through the LoRaWAN® platform. The device has a serial proprietary mcf168 protocol (available on request).

The interface has five opto isolated inputs (4 working with low voltage, one working at 230VAC) and 2 relay outputs.

Applications:

Remote industrial interface Remote process supervisor Datalogger

Technical Data:

CPU Cortex M4 RTC EEProm 32KB Flash 1MB Encryption AES 128 bit LiPo rechargeable battery Class C LoRaWAN® stack @868MHz Serial interfaces: RS232 USB On The Go IoT node setup ad firmware upgrade via USB interface 4 opto-isolated inputs working range 5-24Vac/dc 1 opto-isolated input working at 230Vac 2 relay output with COM, NO, NC contacts carrying 5Amp@230Vac External power supply 10-36Vdc Storage temperature range -20 + 80 °C Working temperature range -10 + 70 °C Dimensions L x H X P: 81 x 60 x 24mm
