Tekbox Tekbox TBCP2-30M1000

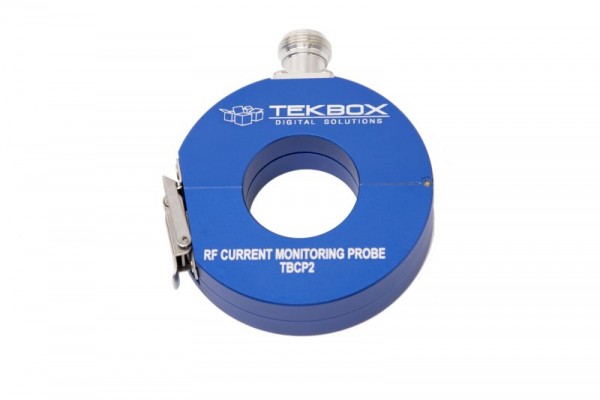

The TBCP2-30M1000 is a snap-on RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The probe is characterized over the frequency range from 10 kHz to 1 GHz. It has a 3 dB bandwidth from 30 MHz – 900 MHz and a transfer impedance of 22 dB? ± 2 dB? from 25 MHz – 1 GHz. The aperture of the RF current monitoring probe is 32 mm.

TBCP2-30M1000

Characterized frequency range: 10 kHz to 1 GHz 3 dB bandwidth: 30 MHz to 900 MHz Transfer impedance: 22 dB? ± 2 dB? from 25 MHz – 1 GHz Max. primary current (DC – 400Hz): >50A, see graph in chapter 5 Max. primary current (RF): 10 A Max. pulse current: 50A Current-time product: 0.007 As Max. core temperature: 125 °C Connector type: N female Aperture diameter: 32 mm Outside diameter: 73 mm Height: 20 mm Weight: 320 g
