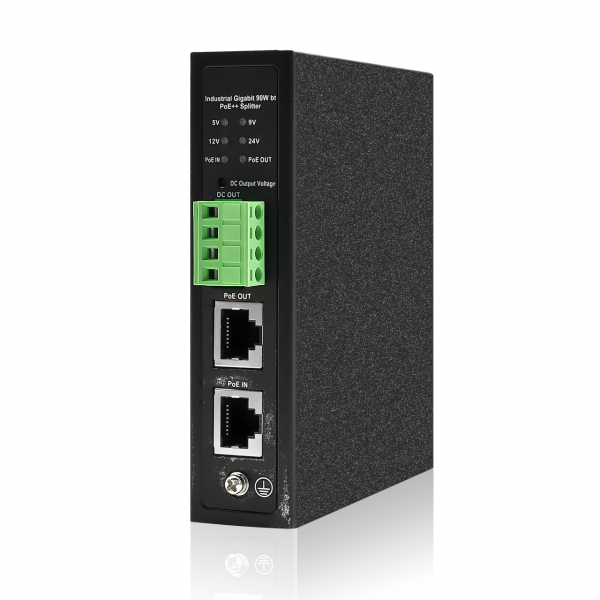

ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD

ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
images similaires, peuvent différer de la description du produit!

prix hors taxe + frais de livraison

Auf Grund des Feiertages "Tag der deutschen Einheit" findet der Versandt Ihrer Bestellung erst am nächsten Werktag statt.
Point fort : Conforme à la norme IEEE 802.3i/u/ab 1 entrée PoE RJ45 GbE 1 GbE RJ45... mehr
informations sur le produit "ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD"

Point fort :

  • Conforme à la norme IEEE 802.3i/u/ab
  • 1 entrée PoE RJ45 GbE
  • 1 GbE RJ45 sortie PoE
  • Borne Phönix à 4 broches, divise le PoE en une sortie DC
  • Sortie de courant 5V/9V/12V/24VDC réglable
  • Compatible avec IEEE 802.3af/at/bt.
  • Puissance de sortie totale Max.72W
  • Trois versions montées sur rail
  • Température ambiante en fonctionnement : -40 à 75°C

Description :

ALL-PSI104G-BT90-PD divise 48VDC en sorties de courant 5V/9V/12V/24VDC via un câble Ethernet RJ45. Support pour les applications PoE dans les environnements Gigabit Ethernet. Conforme à la classification de puissance IEEE 802.3af/at/bt et prend en charge la conversion en une sortie CC et une sortie PoE directe. BT a une puissance de sortie maximale de 72W.

Caractéristiques

  • Conforme aux normes IEEE802.3af, IEEE802.3at, IEEE802.3bt.

  • Soutient les applications PoE dans les environnements Gigabit Ethernet.

  • L’algorithme d’auto-détection permet la prise de courant de IEEE802.3af/at/bt PSE.

  • Séparer le courant 48VDC via le câble Ethernet RJ45 en différentes sorties DC.

  • Supporte une large gamme de tensions d’entrée de 44Vdc à 57Vdc.

  • Puissance de sortie maximale jusqu’à 72W.

  • Support pour la sortie POE selon IEEE 802.3af/at/bt.

  • Sortie réglable 5VDC/14A ou 9VDC/7.8A ou 12VDC/5.9A,24VDC/3A.?

  • Coupure thermique.

  • Protection contre les courts-circuits.

  • Convertisseur DC/DC à haute efficacité.

  • Indicateurs LED pour l’affichage de la consommation d’énergie.

  • Plug-and-Play.

Détails techniques :


Pièce unique Description

Port

1 port PoE 10/100/1000M RJ45 (DATA + POWER IN)

1 port PoE RJ45 10/100/1000M (DATA + POWER OUT)

1 interface DC (DC OUT)

Réseau Média

10Mbps : Câble non blindé Cat 3,4,5

100Mbps : Cat 5,5E Câble non blindé

1000Mbps : Cat 5E, 6 Câble non blindé

Débit de données de passage

10/100/1000 Mbit/s
Sortie de courant Réglable 5VDC/14A max, 9VDC/7.8A max, 12VDC/5.9A max, 24VDC/3A max
Sortie PoE IEEE 802.3af/at/bt, max.72W
Conditions de puissance d’entrée Tension d’entrée DC : 44 à 57 VDC
Indicateurs Indicateurs PoE / Indicateurs de tension de sortie DC
Connexions RJ-45 blindés, EIA 568A et 568B
Dimensions 119x85.5x28mm
Conditions environnementales

Température ambiante en fonctionnement : -40 à +75°C

Humidité de fonctionnement : 90% maximum, sans condensation

.

Température de stockage : -40 à +75°rés;C

Humidité de stockage : 95% maximum, sans condensation

.
Respect des prescriptions légales

IEEE 802.3af (PoE)

IEEE 802.3at (PoE)

IEEE 802.3bt (PoE)

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

Conformité RoHS, CE, FCC
