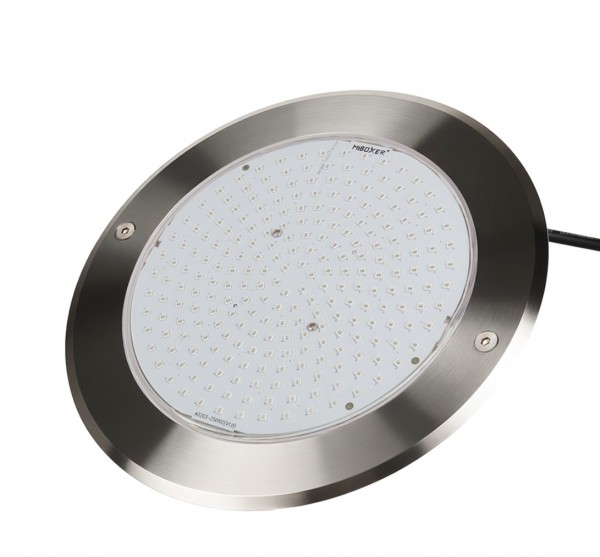

Synergy 21 LED PLC Serie Wall mounted Pool Light 18W RGB+CCT *Milight/Miboxer*
images similaires, peuvent différer de la description du produit!
- Disponibilité: 0
- n° d´article 247909
- Constructeurs: Miboxer
- Référence constructeur: PLC-WP3
- Poids: 1.09kg
- garantie: 60 Mois
- Renseignements sur l'article ?
Downloads
Manuel
Déclaration RoHS et REACH de l'UE
PLC-WP3
18W RGB Wall-mounted LED Pool Light (PLC)
• 16 million colors for selection,... mehr
informations sur le produit "Synergy 21 LED PLC Serie Wall mounted Pool Light 18W RGB+CCT *Milight/Miboxer*"
PLC-WP3
18W RGB Wall-mounted LED Pool Light (PLC)
• 16 million colors for selection, dimmable for rgb& cct& brightness
• Brightness and color temperature adjustable
• Working with master controller to adjust rgb& cct& brightness& saturation
• IP68 waterproof
Features
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colors for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGB Wall-mounted LED Pool Light |
|---|---|
| Model No.: | PLC-WP3 |
| Input Voltage: | DC24V |
| Power: | 18W(R: 5W, G, B: 6W, CW: 9W, W: 7W) |
| CRI: | >80 |
| Color temperature: | RGB mixed CCT |
| Luminous Flux: | 720LM |
| Luminous efficiency: | 80LM/W |
| Beam Angle: | 120° |
| IP Rate: | IP68 |
| Working Temperature: | -10~40°C |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC Standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 0.75 |
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja, PLC |
| Grösse: | 230*46 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K |
| Lumen: | 720 |
| Lumen-Effizienz: | 80 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 18 |
| schwenkbar: | Nein |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 9.00 |
| Lumen: | 720.00 |
| Watt: | 18.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
