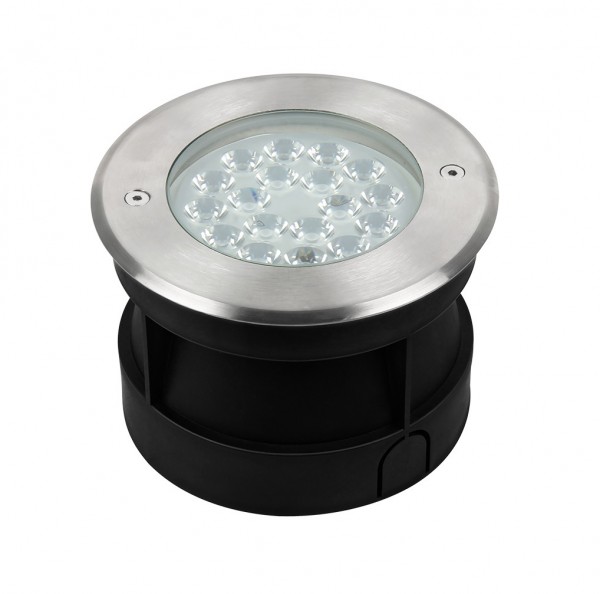

Synergy 21 LED PLC Serie Underground Light 9W RGB+CCT *Milight/Miboxer*
images similaires, peuvent différer de la description du produit!
prix hors taxe + frais de livraison
De nouveau disponible à partir du 12 septembre 2025
- Disponibilité: 0
- n° d´article 247906
- Constructeurs: Miboxer
- Référence constructeur: PLC-RD3
- Poids: 0.989kg
- garantie: 60 Mois
- Renseignements sur l'article ?
Downloads
Manuel EN
Déclaration RoHS et REACH de l'UE
PLC-RD3
9W RGB+CCT LED Underground Light (PLC)
• 16 million colours for selection,... mehr
informations sur le produit "Synergy 21 LED PLC Serie Underground Light 9W RGB+CCT *Milight/Miboxer*"
PLC-RD3
9W RGB+CCT LED Underground Light (PLC)
• 16 million colours for selection, dimmable for rgb& cct& brightness
• Brightness and colour temperature adjustable
• Working with master controller to adjust rgb& cct& brightness& saturation
• IP68 waterproof
Features
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb & cct & brightness
- Working with master controller to adjust rgb & cct & brightness & saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGB+CCT LED Underground Light |
|---|---|
| Model No.: | PLC-RD3 |
| Input Voltage: | DC24V |
| Power: | 9W(R, G, B: 3W, CW: 7W, WW: 7W) |
| CRI: | >80 |
| Colour temperature: | 2700K~6500K |
| Luminous Flux: | 610LM |
| Luminous efficiency: | 95LM/W |
| Beam Angle: |
| IP Rate: | IP68 |
|---|---|
| Working Temperature: | -10~40? |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Abstrahlwinkel: | 15 |
| Ampere: | 0.375000 |
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja, PLC |
| Grösse: | 150*104 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K |
| Lumen: | 610 |
| Lumen-Effizienz: | 95 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 9 |
| schwenkbar: | Nein |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 9.00 |
| Lumen: | 610.00 |
| Watt: | 9.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
