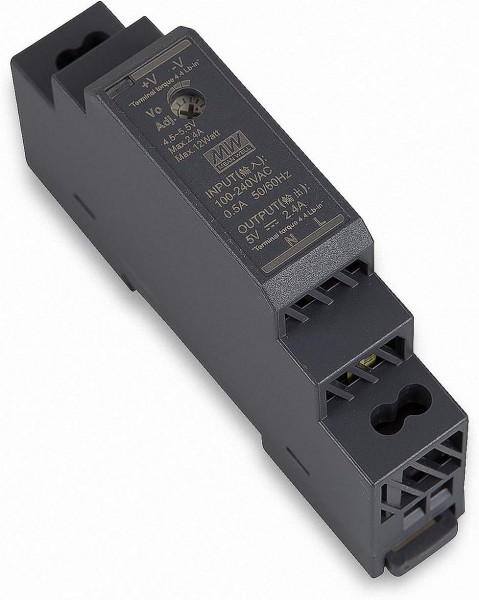

ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5
prix hors taxe + frais de livraison
disponible, livraison sous environ 1-3 jours ouvrés
- Disponibilité: 0
- n° d´article 219570
- Constructeurs: Meanwell
- Référence constructeur: HDR-15-5
- N° EAN 4711287421612
- Poids: 0.08kg
- garantie: 24 Mois
- Renseignements sur l'article ?
Downloads


Switch-mode power supply, DIN mounting
Switch-mode power supply, DIN mounting, 12 W 5 V / 2.4 A.
Can be mounted directly on the DIN rail
Closed design, touch-protected screw connections
Universal input
Overload protection through current limitation, auto recovery
protected against short circuit, overload, overvoltage
Low no-load power
LED display for power-on
Insulation class II
Output voltage: 5 V
Output current: 2.4 A
Output power: 12 W
Residual ripple: 80 mVp-p
Efficiency: 80%
Input voltage range: 85...264 V AC (47...63Hz)/ 120...370 V DC
Inrush current, max.: 45 A
Overload protection: 110...145%
Insulation voltage, I/P-O/P: 3000 V AC
Operating temperature range: -30...+70 °C
Weight: 78 g
Produktmerkmale:
Ampere: | 2,4 |
Betriebstemperatur: | -30 bis +70 |
CC oder CV: | CV |
Dimmbar: | Nein |
Grösse: | 17,5*90*54,5 |
Schutzklasse: | IP20 |
Volt: | 5 |
Watt: | 12 |
